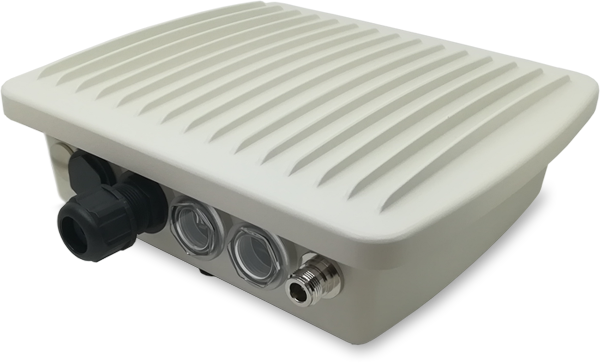

ResIOT® X4
Outdoor IP67 Base Station
Business-grade LoRaWAN® Gateway
ResIOT® X4 is the latest LoRaWAN® Gateway/Base station Business-grade model. It is specifically designed for outdoor application thanks to its modern-designed IP67 aluminium case and waterproof components & connectors. This gateway works in a range of industrial temperatures, from -40 °C to + 85 °C. That’s makes our device suitable for every environmental conditions and this is the main reason of its wide market success. ResIOT® X4 provides durable, low-power, widearea connectivity in support of M2M and IoT applications. It is perfect for demanding markets like Smart Grid, Energy, Telecom and Broadcasting.
ResIOT® X4
Outdoor IP67 Base Station Business-grade LoRaWAN® Gateway
ResIOT® X4 is the latest LoRaWAN® Gateway/Base station Business-grade model. It is specifically designed for outdoor application thanks to its modern-designed IP67 aluminium case and waterproof components & connectors. This gateway works in a range of industrial temperatures, from -40 °C to + 85 °C. That’s makes our device suitable for every environmental conditions and this is the main reason of its wide market success. ResIOT® X4 provides durable, low-power, widearea connectivity in support of M2M and IoT applications. It is perfect for demanding markets like Smart Grid, Energy, Telecom and Broadcasting.
8 RADIO CHANNELS
AVAILABLE
8 RADIO CHANNELS AVAILABLE
LoRa® Multi-SF 8-channel radio card, able to receive up to 8 LoRa® modulated packets simultaneously
DATA
RETENTION
DATA RETENTION
In case of loss of connection between the gateway and the network server, the radio messages sent are not lost, but saved in the memory and forwarded later
ResIOT® Merlin IoT Box software pre-installed and ready to be used. The complete web panel for your gateway management and configuration
FULL REMOTE
MANAGEMENT
FULL REMOTE MANAGEMENT
Cloud platform included for the full remote management and configuration of your ResIOT® gateway
GLOBAL CONNECTIVITY FOR YOUR DEVICES!
Chip SIM MFF2 included and ready to be activated and MicroSIM 3FF slot available for worldwide connectivity! In addition you can use your own SIM Card or the Wi-Fi connection, available on the device as an option.
Technical Features
CPU Cortex-A7 629MHz | RAM 512Mb | eMMC Flash 4Gb
Cache 32 KB-I, 32 KB-D, 128 KB L2
PoE 42÷60V | DC 12÷24V
It can be powered with PoE or DC12-24 Volt, or both at the same time for Uninterruptible Power Supply.
Data Retention
In case of loss of network connection between gateway and network server the arrived radio messages are not lost, they are saved in memory and forwarded to the network server when the connection is restored.
RS-485 Connection
For example, for the Modbus RTU RS-485 connection to an external device or to a battery charger control system in case of power supply via solar panels (ResIOT-Solar5 kit).
Optional RS-232 and CAN-bus.
ChipSIM MFF2 | MicroSIM 3FF Slot
Chip SIM MFF2 included and ready to activate (worldwide connectivity! Visit sim.resiot.io). MicroSIM 3FF slot available. You can use your own SIM Card (ChipSIM will be automatically deactivated)
Modem 2G 3G/4G LTE | GPS GNSS | Wifi
Modem Quectel EG91x 2G-3G-4G LTE, GPS module ublox MAX-M8Q (concurrent reception of up to 3 GNSS), optional Wifi
Waterproof case IP67 | -40 / +85 °C | 10%-95% H
Waterproof painted aluminum case IP67, waterproof components and connectors. It is able to operate in an industrial temperature range from -40 ° C up to + 85 ° C with a humidity range of 10% – 95%
Semtech SX1303
8 Multi-SF LoRa® Channels, Listen before talk, Fine Timestamp capability for Time Difference of Arrival (TDOA & network-based geolocation), Able to receive up to 8 LoRa® modulated packets simultaneously
LoRaWAN® Classes A, B, C
Support for classes A, B, C (B only with GPS/GNSS version)
Embedded sensors
Embedded Accelerometer, Shock, Inclination, Temperature & Humidity Sensors
Linux Yocto 4.1.15
KIT Toolchain available for software developer
Software ResIOT® Base Station Client/Merlin IoT Box
Software Features
Secure connection from gateway to network server
Secure TCP, protocol: Websocket, Mqtt and Rest API to network server
Automated and centralized configuration
Completely automated and centralized, all the parameters are configured within the network server and then takes care of sending them correctly to the gateways
Radio Channel configuration
Custom remote channel configuration. Automatic reconfiguration of channels for gateways and devices
Data retention
In case of loss of network connection between gateway and network server the arrived radio messages are not lost, they are saved in memory and forwarded to the network server when the connection is restored.
Health check and gateway status
Advanced watch dog for Gateway hardware / software Automatic restart of network,services or system in case of fail Radio card, LTE/Ethernet connection
Monitoring and reporting
Full monitoring of all parameters: Disk, Memory, Cpu, ethernet or 2G/3G/4G LTE quality connection. All data is sent periodically to the network server and visible through graphs and reports
Alert management
It is possible to configure different types of alerts by configuring
different alert thresholds for: timeout, 2G/3G/4G LTE connection quality, disk errors, full Ram … The alerts can be configured and sent by ResIOT® with email, Snmp server, Snmp trap, Modbus, generic Curl call, etc … through the ResIOT® platform functions and programmable in Lua scripts
Software management
Through web interface [gateway ip: 50056], API or remotely through ResIOT® Network Server
VPN management
It is possible to configure and send the VPN configuration remotely
Remote access
the gateways are accessible via Ssh or web directly from the ResIOT® platform through ResIOT® Gateway Remote Access Server
Reverse proxy support
It is possible to configure a reference server (ResIOT® Reverse Proxy) for direct access via SSH or web interface to the gateway even without VPN. ResIOT® manages a secure connection only if requested
Autoprovisioning
With the ResIOT® Autoprovisioning functionality, the gateway automatically configures itself to the LoRaWAN® network without the need for other interventions. The gateway is completely manageable remotely. It also has a practical web control interface
Easy installation wit App IoS/Android and QRCODE
For the supported models it is possible to create a QRCODE on the label to be pasted on the gateways (by default on the ResIOT® X2,X4, X7 gateways we produce). Through the IoS / Android ResIOT mobile app it is possible to connect a gateway to the network in just a few seconds and safely.
Supported OS & Live Updates
Linux 32/64 bit & Arm/Linux. Available and automatic Live Updates
Four modes of use available:
- LoRaWAN® Gateway with ResIOT® Merlin Base Station Client (for business or carrier-grade networks with full remote control and secure connection with ResIOT® GW Remote Access Server)
- LoRaWAN® Gateway with Semtech™ Packet Forwarder
- Industrial IoT Box. On-premises ResIOT® LoRaWAN® Network Server and ResIOT® IoT Platform all in a box with free unlimited license
- Hybrid Mode 1+3 LoRaWAN® Gateway with ResIOT® Merlin Base Station Client & Industrial IoT Box
| Category | Download | Date | |
|---|---|---|---|
| Datasheet | ResIOT® X4 Datasheet V1.6 (EN) | 2022-01-31 | |
| Guide & Manual | ResIOT® X4 Quick Start Guide & Manual | 2021-04-06 | |
| Immagine | ResIOT® X4 image HD | 2021-03-31 | |
| Immagine | ResIOT® X4 Models images HD | 2021-03-31 | |
| Manual | ResIOT® X4 CE Manual | 2021-03-31 |
| Code | Description | |
|---|---|---|
| ResIOT-PSDKIT | External power supply kit 12÷24V and RS485 port for Gateway ResIOT® X4 & ResIOT® X7 | |
| ResIOT-Solar5 | Solar Power Kit 12v 5W 24h |
Available Models
ResIOT-X4-ETH-1-868-00

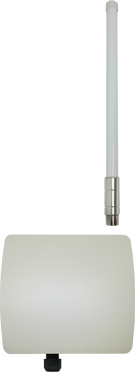

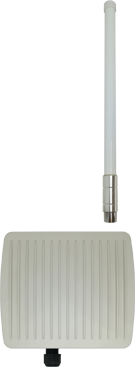

ETH, PoE, LoRa
ResIOT-X4-ETH-1-915-00
ETH, PoE, LoRa 915MHz
ResIOT-X4-ETH-1-868-0W

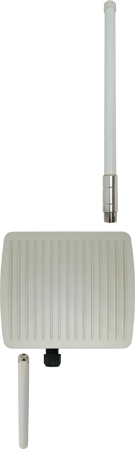

ETH, PoE, LoRa, Wifi

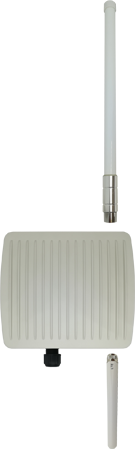

ResIOT-X4-LTE-1-868-00
ETH, PoE, LoRa, Modem 2G/3G/4G LTE + ChipSIM+ Slot MicroSIM 3FF
ResIOT-X4-LTE-1-868-G0

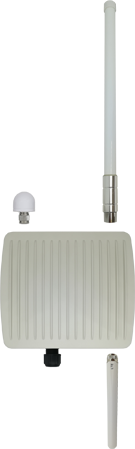

ETH, PoE, LoRa, Modem 2G/3G/4G LTE + ChipSIM+ Slot MicroSIM 3FF, GPS
